Main product features：

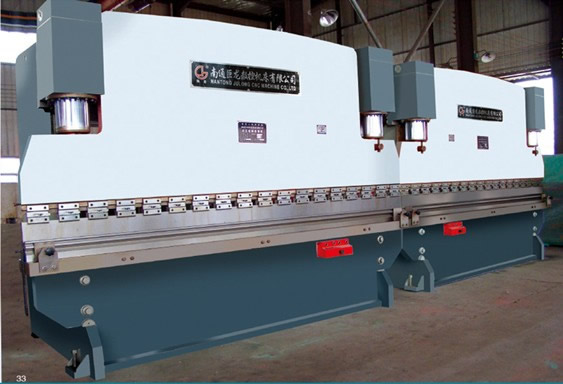

WC67K series adopts duplex or triplex of the same specification as the main frame, and is equipped with double machine linkage synchronous device.
Duplex bending machine can process the special work pieces with excessive length, thus is especially suitable for urban construction, automobile manufacturing, light pole of highway, electric pole processing and manufacturing.
Two machines also can be used separately, which will improve production efficiency.
It there are any special requirements, it can be tailored and designed according to the requirements of the customers.
Technical parameters
|
Specification and model
|
Nominal force (kN) |
Length of work table (mm) |
Distance between columns (mm) |
Depth of throat (mm) |
Slider stroke (mm) |
Maximum opening height between worktable and slide (mm) |
Main motor power (kw) |
External dimension
(L x W x H)
(mm) |
|
2-100/3200 |
2×1000 |
2×3200 |
2600 |
320 |
150 |
450 |
2×7.5 |
2×3740×1585×2670 |
|
2-160/3200 |
2×1600 |
2×3200 |
2550 |
320 |
200 |
500 |
2×11 |
2×3740×2045×3080 |
|
2-160/3600 |
2×1600 |
2×3600 |
2950 |
320 |
200 |
500 |
2×11 |
2×4140×2045×3080 |
|
2-160/4000 |
2×1600 |
2×4000 |
3350 |
320 |
200 |
500 |
2×11 |
2×4545×2045×3080 |
|
2-160/5000 |
2×1600 |
2×5000 |
4100 |
500 |
200 |
500 |
2×11 |
2×5530×2435×3630 |
|
2-160/6000 |
2×1600 |
2×6000 |
5100 |
500 |
200 |
500 |
2×11 |
2×6530×2435×3630 |
|
2-250/3200 |
2×2500 |
2×3200 |
2700 |
400 |
250 |
560 |
2×15 |
2×4000×2250×4060 |
|
2-250/4000 |
2×2500 |
2×4000 |
3300 |
400 |
250 |
560 |
2×15 |
2×4800×2250×4060 |
|
2-250/5000 |
2×2500 |
2×5000 |
4100 |
400 |
250 |
560 |
2×15 |
2×5800×2250×4060 |
|
2-320/4000 |
2×3200 |
2×4000 |
3300 |
400 |
250 |
560 |
2×15 |
2×4060×2570×4560 |
|
2-320/5000 |
2×3200 |
2×5000 |
4300 |
400 |
250 |
560 |
2×22 |
2×5060×2570×4560 |
|
2-320/6000 |
2×3200 |
2×6000 |
5300 |
400 |
200 |
500 |
2×22 |
2×6060×2570×4560 |
|
2-400/4000 |
2×4000 |
2×4000 |
3100 |
400 |
320 |
625 |
2×37 |
2×4140×3240×3880 |
|
2-400/5000 |
2×4000 |
2×5000 |
4210 |
400 |
320 |
625 |
2×37 |
2×5050×3240×3880 |
|
2-500/4000 |
2×5000 |
2×4000 |
3100 |
400 |
320 |
630 |
2×37 |
2×4090×2965×5320 |
|
2-500/5000 |
2×5000 |
2×5000 |
4100 |
400 |
320 |
630 |
2×37 |
2×6530×2965×5320 |
|
2-500/6000 |
2×5000 |
2×6000 |
5100 |
400 |
320 |
630 |
2×37 |
2×6090×2965×5320 |
|
2-630/5000 |
2×6300 |
2×5000 |
4100 |
400 |
320 |
710 |
2×45 |
2×5050×4910×3200 |
|
2-630/6000 |
2×6300 |
2×6000 |
5100 |
400 |
320 |
710 |
2×45 |
2×6050×4910×3200 |
|
2-800/8000 |
2×8000 |
2×8000 |
6700 |
400 |
100 |
750 |
2×55 |
2×9500×3000×6050 |
